VF90
VF90
Powerful, Fast & Head Turning
1832cc, Inline 4-cylinder, single overhead camshaft
Key Features
Super High Output 1.8 Litre 16-Valve SOHC for extreme acceleration and speed.
Designed for high performance boating such as skiing, racing and competitive fishing.
ECU mapped to achieve maximum performance and acceleration, powerful mid-range and high top-end speed.
Unique, bold and agressive design and styling that turns heads.
Large 35-amp alternator for powering onboard electronics
Features & benefits

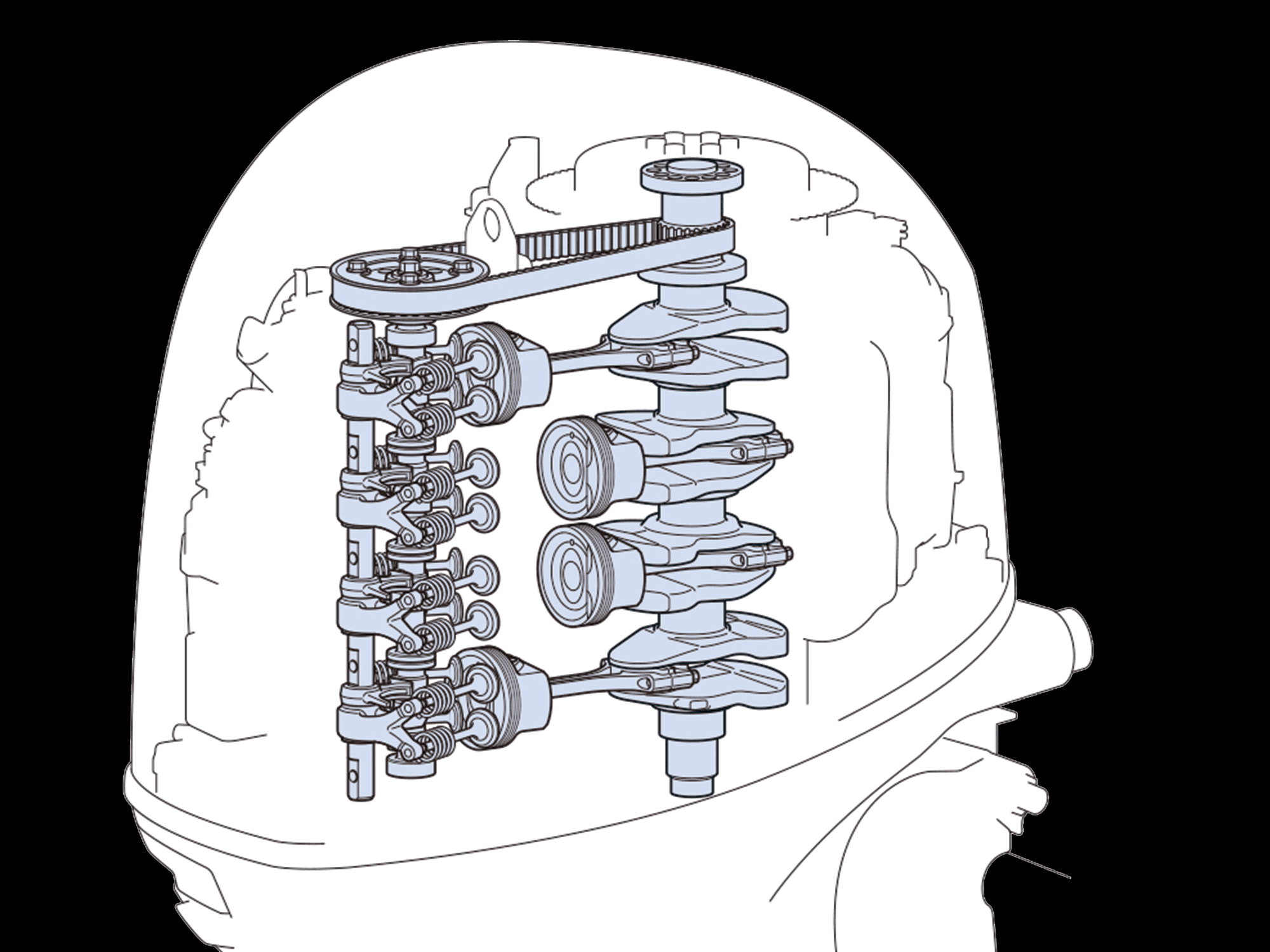

Super High Output
16-Valve SOHC Engine
Powerful 1.8 Litre, 16-valve single overhead camshaft, In-Line 4 design.
ECU has been specially mapped to achieve maximum performance and acceleration, punchy mid-range and high top-end speed.
Powerful Hole Shot

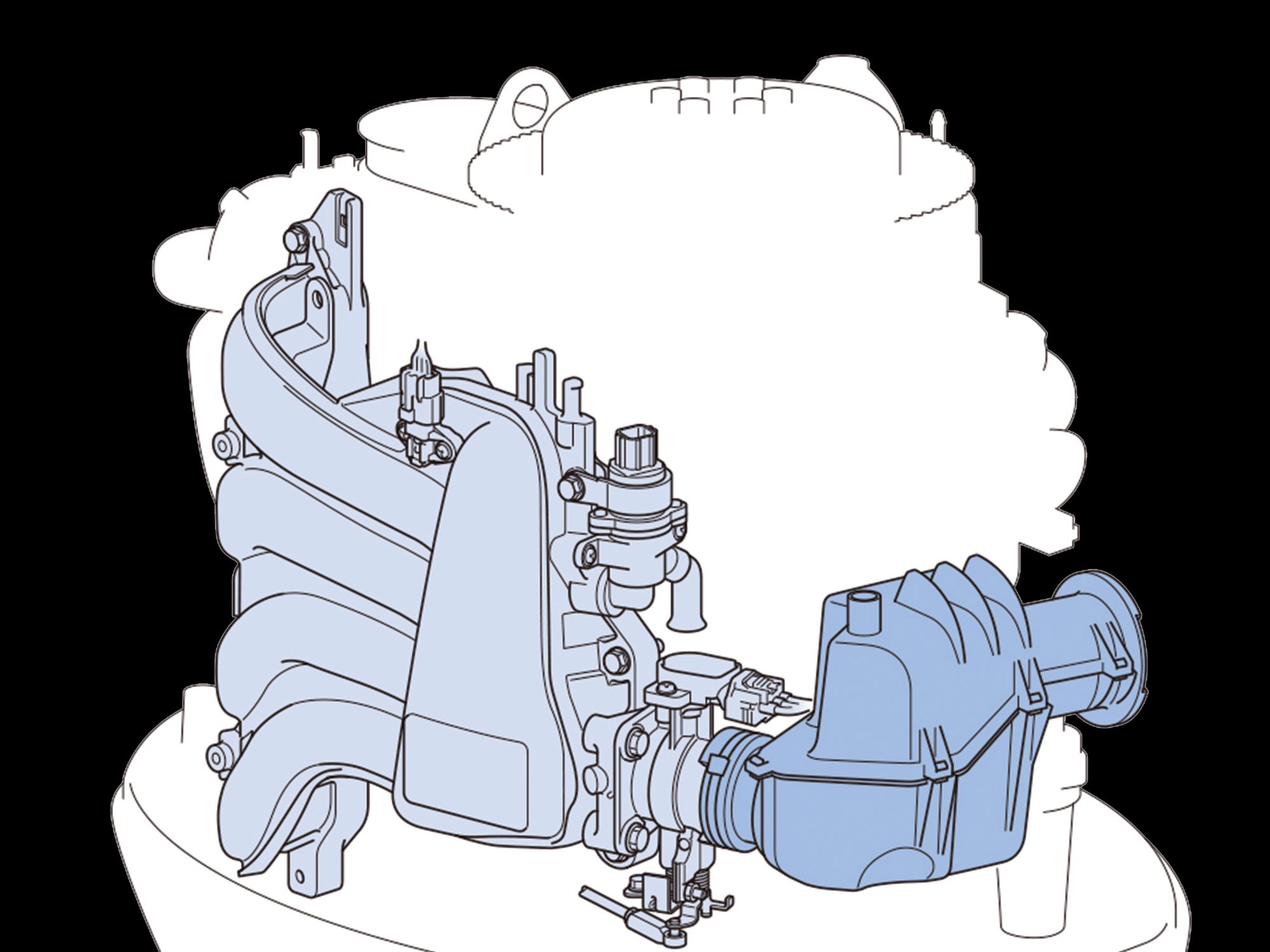

Single Bore Throttle Body
The 60mm single bore throttle intake minimises intake resistance and provides first-rate respone for brisk-acceleration and high-speed operation.
Optimum Power
Multi-Point Electronic Fuel Injection
Working in unison with multiple sensors and the electonic control unit, the Multi-Point Electronic Fuel Injection (EFI) system injects the right air - fuel mixture at the optimum timing.
Delivers maximum engine performance and quick engine starts.
Quick Acceleration
Offset Crankshaft
The 5mm Offset Crankshaft allows for larger intake volume and intake tubes, boosting engine torque in the low and mid-speed ranges for quicker acceleration.
Charging Power
High Output Alternator
The 12 Volt 35 Amp high-output alternator ensures that power is always available to start the engine, even after long periods of idling.
Provides sufficient power to run an array of electronic devices.
Improved Response
Prime Start
Exclusive to Yamaha, PrimeStart™ makes starting as easy as starting a car.
Automatically controls the ‘warming up’ process.
Eliminates the need for a choke or revving in neutral for cold starts.
More Convenience

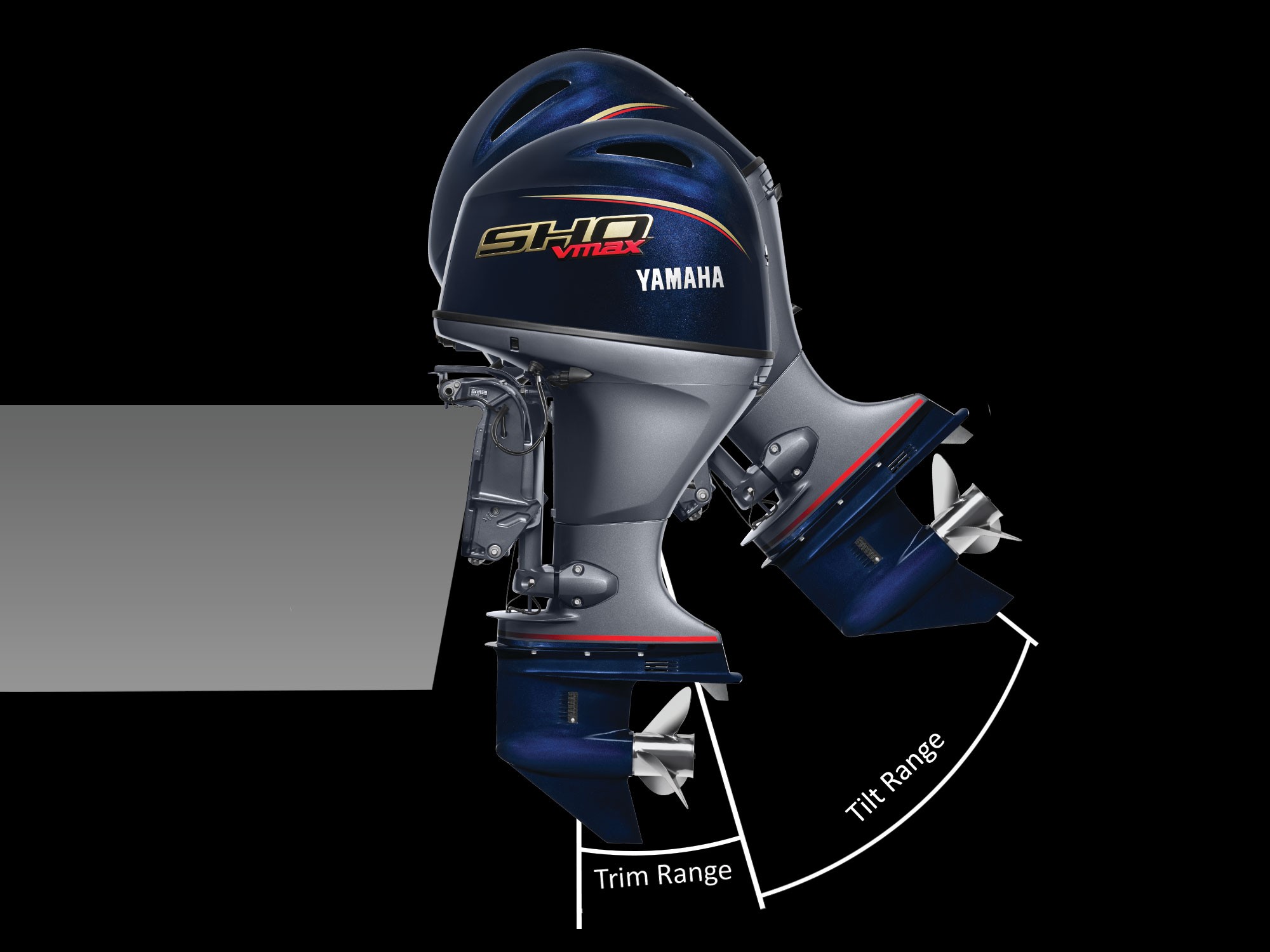

Power Tilt and Trim
Power Trim and Tilt (PTT) allows for the quick and easy tilting up and down of the engine and fine trim adjustment, for a more enjoyabe boating experience.
Precise Control

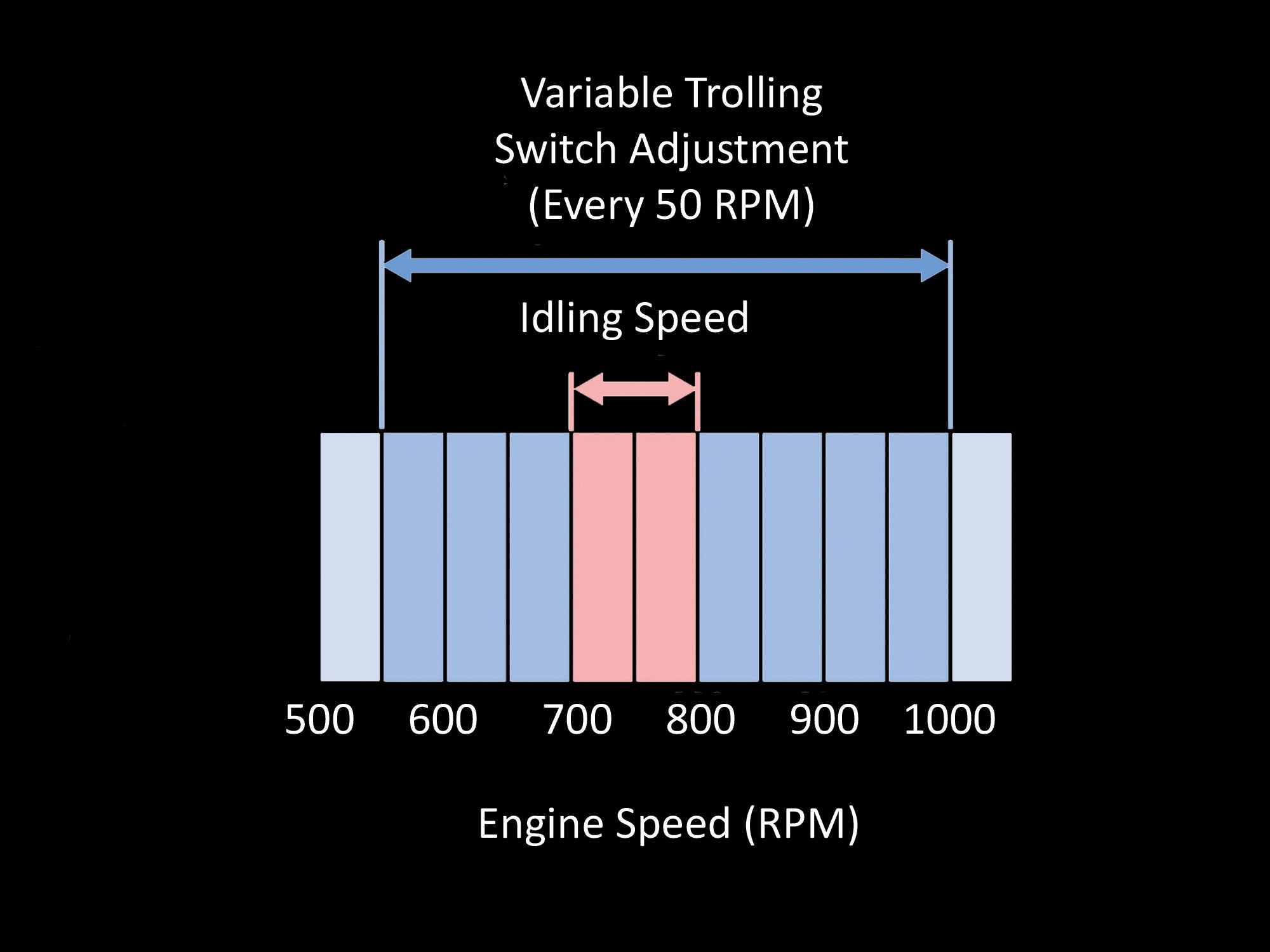

Variable Trolling Control
Yamaha’s variable trolling control lets the skipper adjust engine idle speed in 50 RPM increments via the digital gauge.
This allows you to set a precise trolling speed for better lure presentation when targeting different fish species.
Easy Flushing
Fresh Water Flushing Device
Simply connect a garden hose to the outboard's input port to flush out salt and debris without starting the engine.
This helps prevent corrosion, extends the life of the outboard and keeps things nice and quiet for your neighbours.
Information Management
Digital Gauges & Displays
This engine is compatiable with Yamaha's complete line-up of digital gauges and advanced touchscreen displays.
Easy to read, simple to use and providing fingertip access for all of your engine’s vital functions and statistics.
Quiter Operation
Shift Dampner System (SDS) Props
Yamaha’s patented Shift Dampener System (SDS) reduces the typical gear-shift ‘clunk’ by using a splined rubber hub to absorb noise and vibration.
This feature delivers smoother and quieter shifting for a more enjoyable boating experience.
Yamaha Advantage
Built tough.
Legendary Reliability
Smooth & Whisper Quiet
Shift dampening props, labyrinth exhaust systems, water-sealed outer shaft walls and noise-suppressing cowlings are just some of the technologies that help Yamaha outboards achieve such smooth and whisper quiet operation.
Fuel Efficiency
Yamaha’s Multi-Point Electronic Fuel Injection (EFI), vapor management and low-emission technologies are just some of the reasons why Yamaha outboards deliver excellent fuel economy and reduced emissions.
Four-stroke Advantage
Utilising advanced Electronic Fuel Injection (EFI) and engine management technologies, Yamaha four-stroke outboards are extremely powerful, smart, efficient and environmentally friendly.
2+2 Year Warranty
Yamaha outboards are covered under a two-year Manufacturer’s warranty, plus an extra two-years Extended Warranty for Customers who complete their scheduled services with an Authorised Yamaha Outboard Dealer. VMAX V6 models receive a two-year, plus one-year extended warranty.
Yamaha Built Componentry
We build our own gauges, throttles, props and other rigging componentry, to deliver a completely integrated and seamless engine ecosystem for superior outboard performance.
Japanese Quality
Uncompromising attention to detail, precision engineering and a continuous improvement philosophy make Japanese-made Yamaha outboards renowned for their exceptional quality, durability and performance.
Legendary Reliability
There’s a reason more Australian boaters choose Yamaha outboards. Yamaha has earned a reputation for building the world’s most reliable outboards, allowing you to relax and enjoy your time on the water.
VF90
VF90
VF90
Meet the line up
Overview
Compatibility
Colours
Operation Method
Integrated Steering System
Tiller
Trim & Tilt Method
Digital Gauges
Electronic Key System
Specifications
Engine Type
Configuration
Bore x Stroke (mm)
Displacement (cm3)
Recommended Max RPM
Weight (kg)
Dry weight without prop.
Transom Height
Starter Method
Fuel Tank Capacity (L)
Fuel Induction System
Alternator Output
Gear Ratio
VF90
Signature Grey
Pearlescent White
Mechanical Control
N/A
N/A
Power Trim & Tilt
CL5
6Y8
No
4-Stroke
16 Valve SOHC Direct Action In-Line 4
81 x 88.9
1832
5000-6000
VF90LB: 162 VF90XB: 166
L: 516 (20.3) X: 643 ( 25.3)
Electric
-
Electronic Fuel Injection
35A
2.33 : 1
