Perfect Power for Your Tinnie
362cc, Inline 2-cylinder, single overhead camshaft
Key Features
Lightweight, powerful and compact design
Prime start allows for easy hot and cold starts
Electric start for effortless starting
Simple to use and quiet fresh water flushing port for long-term engine care
Comfortable ergonomic shift lever and tiller handle for comfort and convenience
Features & benefits
Seamless Performance
Smooth Operation
With impressive features like a long span mounting and labyrinth exhaust system, this engine delivers smooth and quiet power.
Improved Response
Prime Start
Exclusive to Yamaha, PrimeStart™ makes starting as easy as starting a car.
Automatically controls the ‘warming up’ process.
Eliminates the need for a choke or revving in neutral for cold starts.
Compact Power

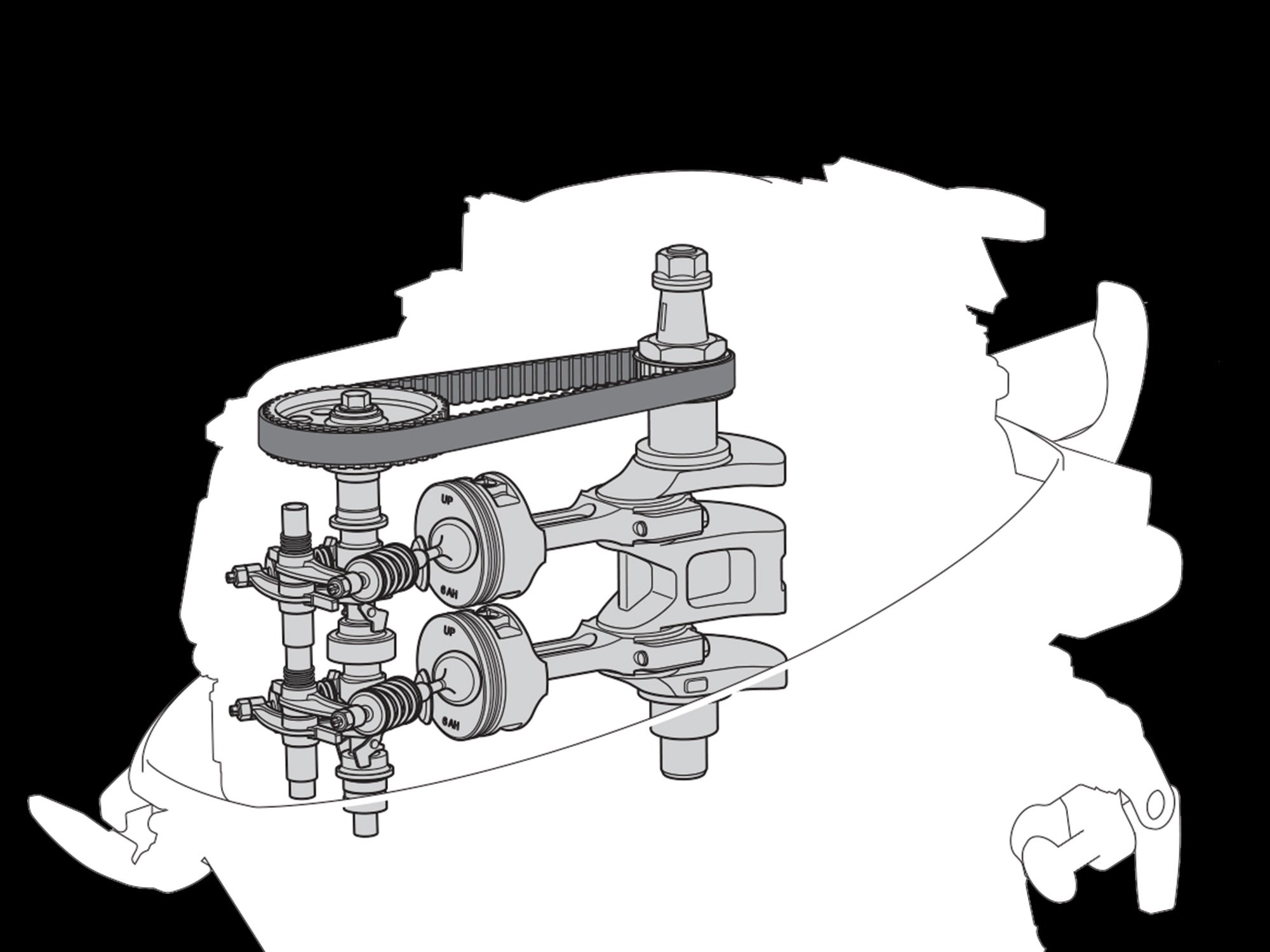

Twin Cylinder SOHC Engine
Small in size, but big in performance, the 362cc, 15HP, 2-cylinder, single overhead camshaft (SOHC), four-stroke engine is lightweight and portable
Suitable for tinnies, inflatables and poly boats.
User Friendly

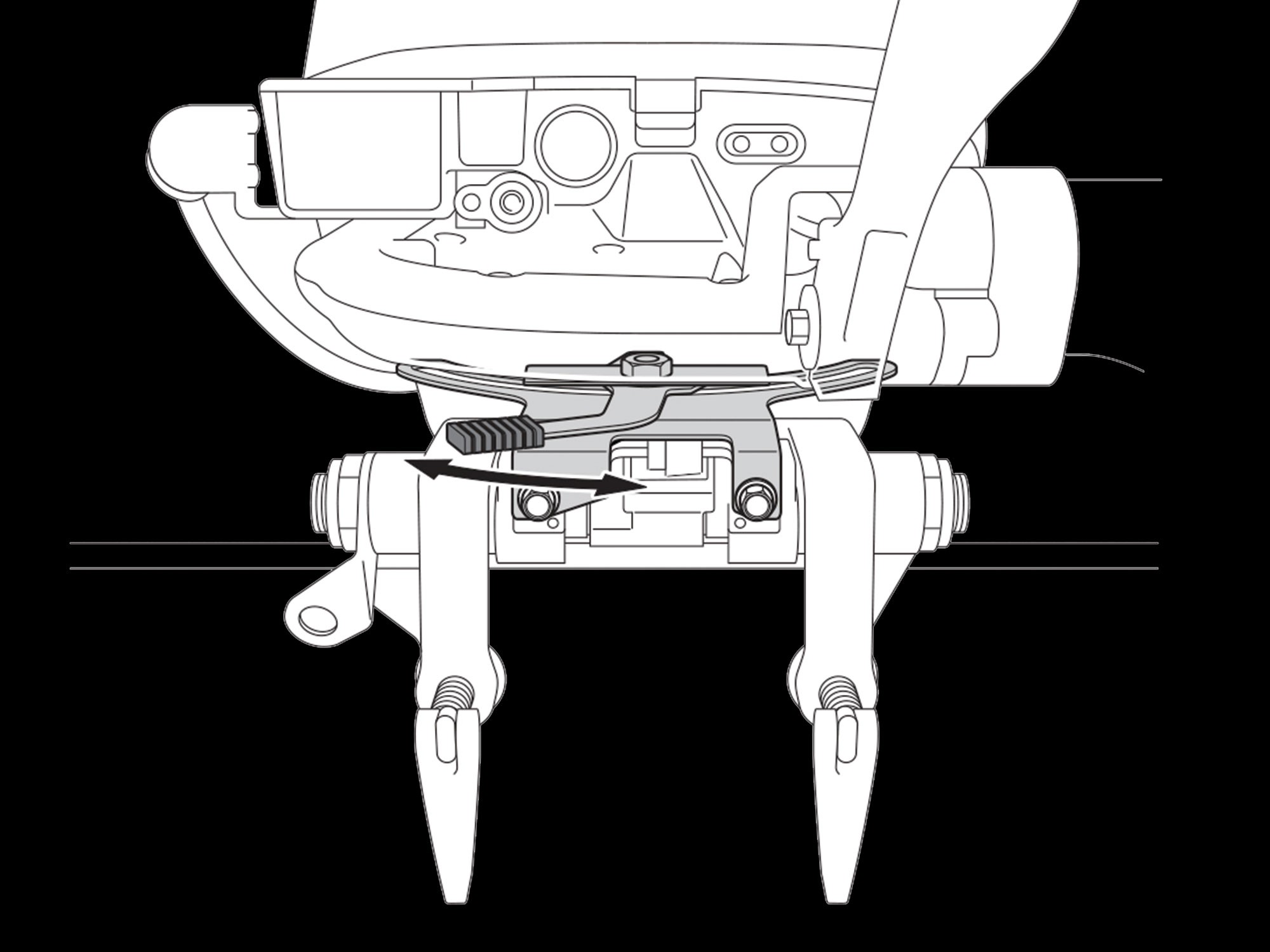

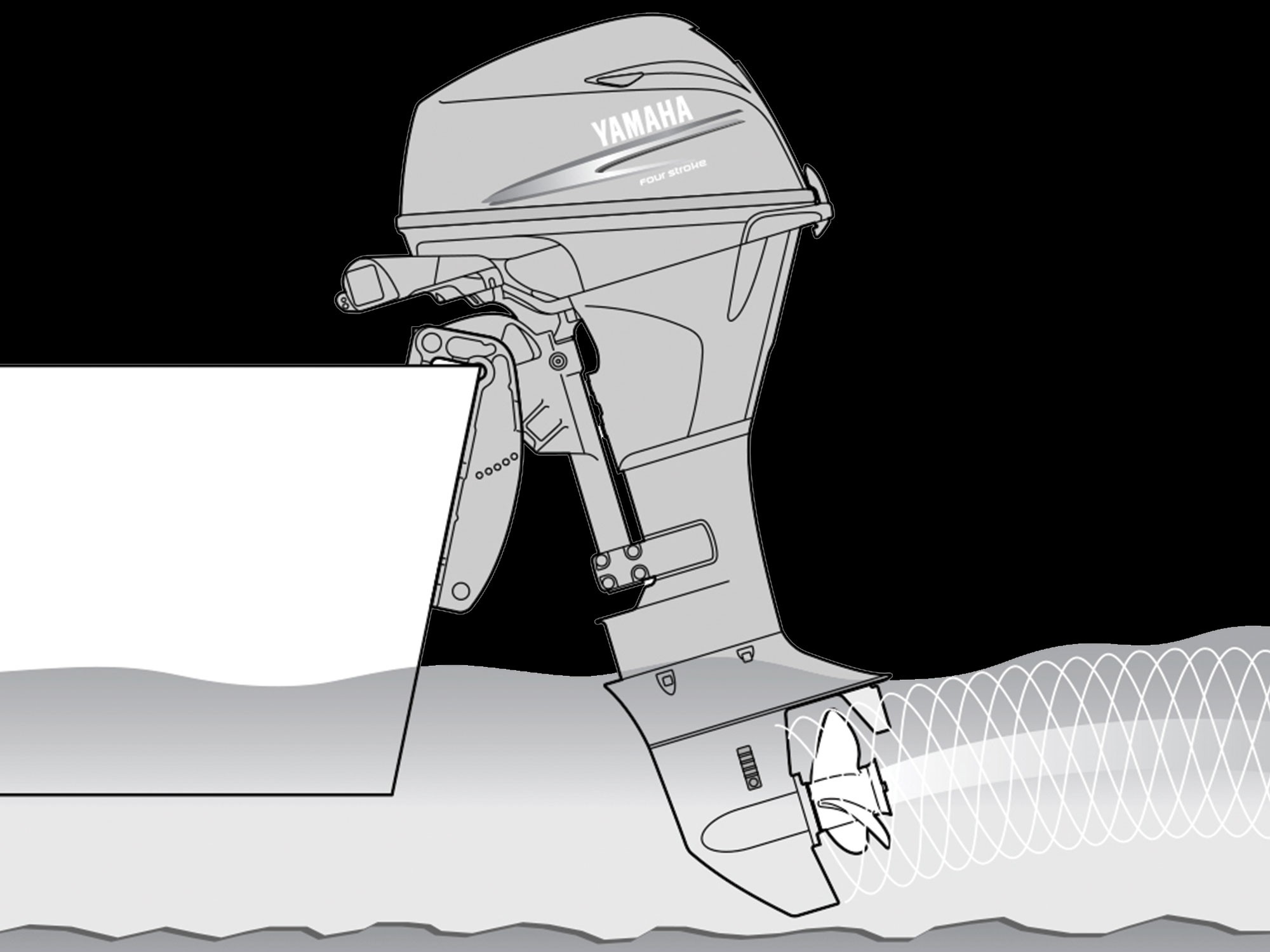

Manual Tilt Shallow Water Drive
The three-step shallow water drive system allows you to partially tilt the engine for shallow water operation, preventing the engine from hitting the bottom.
Handy for operating in shallow rivers, estuaries, creeks and when coming in to shore.
Easy Stowing
Engine Rest Pad
The rest-pads allow the engine to be laid and stored vertically on its back.
Alternatively, it can be laid on its side if more space is available.
The advanced leak-proof oil system ensures hassle-free transport and storage without oil leaks.
Better Control
Large Shift Lever and Tiller Handle
A large and comfortable twist-grip throttle allows easy control of the engine.
The side-mounted shift selector and integrated kill provide added user convenience.
Combined these features deliver superb handling and manoeuvrability.
Portability
Ergonomic Carry and Control Handles
Large grips located on the front and back of the engine and foldaway tiller handle make carrying, mounting, removing and storing the engine easy.

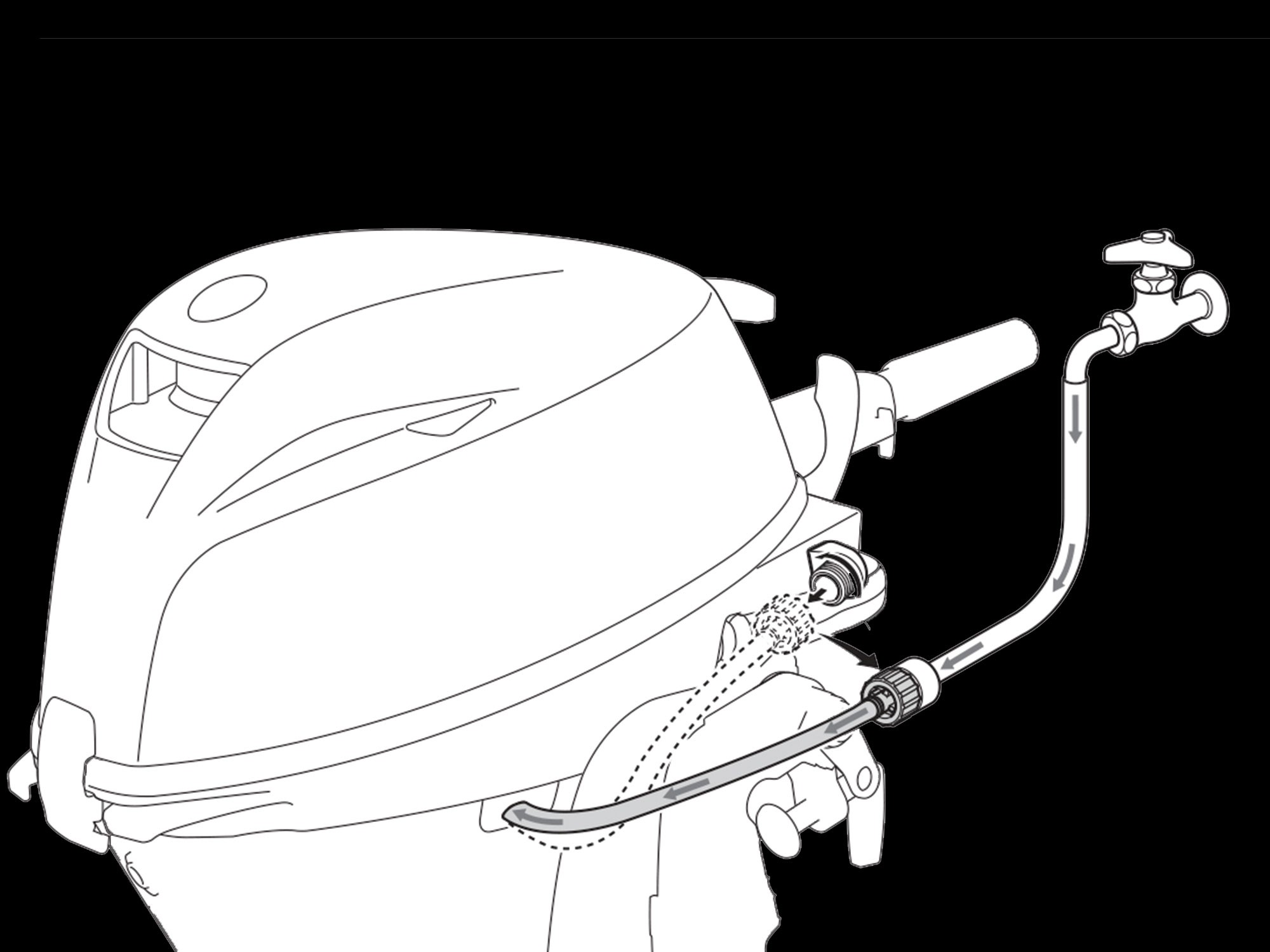

Easy Flushing
Fresh Water Flushing Device
Simply connect a garden hose to the outboard's input port to flush out salt and debris without starting the engine.
This helps prevent corrosion, extends the life of the outboard and keeps things nice and quiet for your neighbours.
Yamaha Advantage
Built tough.
Legendary Reliability
Smooth & Whisper Quiet
Shift dampening props, labyrinth exhaust systems, water-sealed outer shaft walls and noise-suppressing cowlings are just some of the technologies that help Yamaha outboards achieve such smooth and whisper quiet operation.
Fuel Efficiency
Yamaha’s Multi-Point Electronic Fuel Injection (EFI), vapor management and low-emission technologies are just some of the reasons why Yamaha outboards deliver excellent fuel economy and reduced emissions.
Four-stroke Advantage
Utilising advanced Electronic Fuel Injection (EFI) and engine management technologies, Yamaha four-stroke outboards are extremely powerful, smart, efficient and environmentally friendly.
2+2 Year Warranty
Yamaha outboards are covered under a two-year Manufacturer’s warranty, plus an extra two-years Extended Warranty for Customers who complete their scheduled services with an Authorised Yamaha Outboard Dealer. VMAX V6 models receive a two-year, plus one-year extended warranty.
Yamaha Built Componentry
We build our own gauges, throttles, props and other rigging componentry, to deliver a completely integrated and seamless engine ecosystem for superior outboard performance.
Japanese Quality
Uncompromising attention to detail, precision engineering and a continuous improvement philosophy make Japanese-made Yamaha outboards renowned for their exceptional quality, durability and performance.
Legendary Reliability
There’s a reason more Australian boaters choose Yamaha outboards. Yamaha has earned a reputation for building the world’s most reliable outboards, allowing you to relax and enjoy your time on the water.

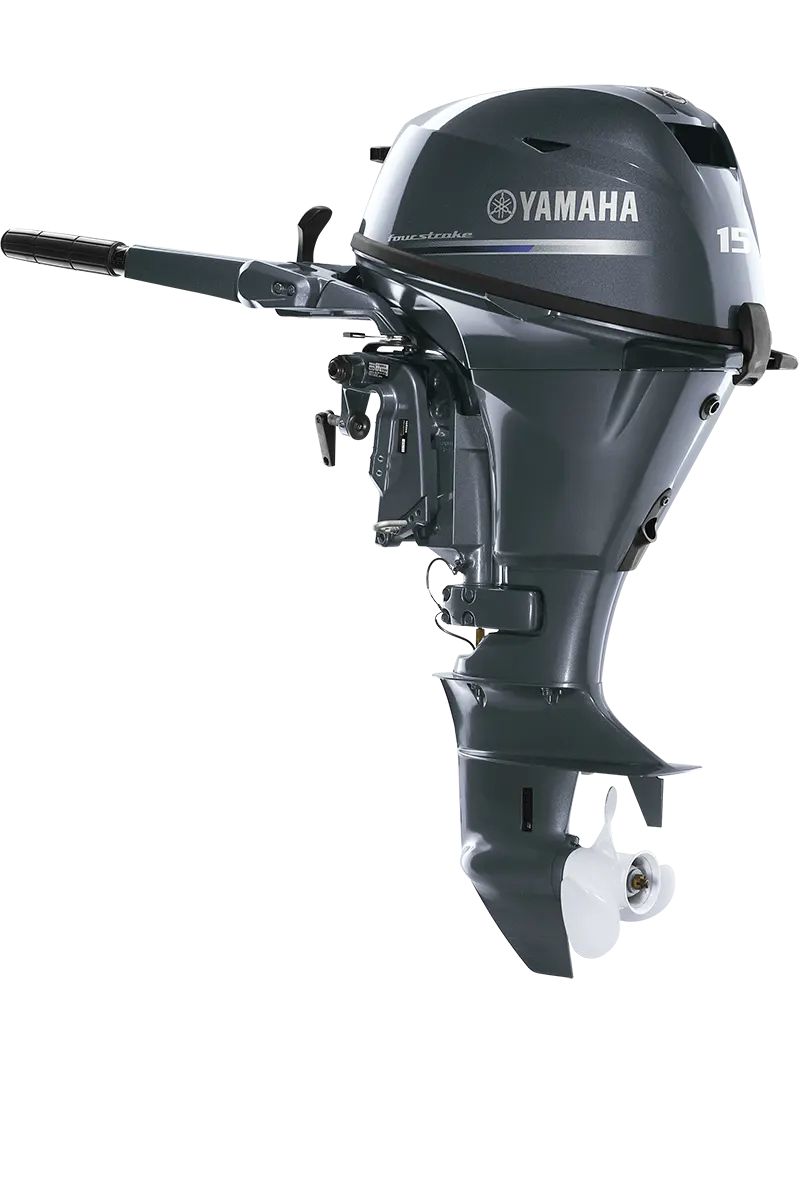

15

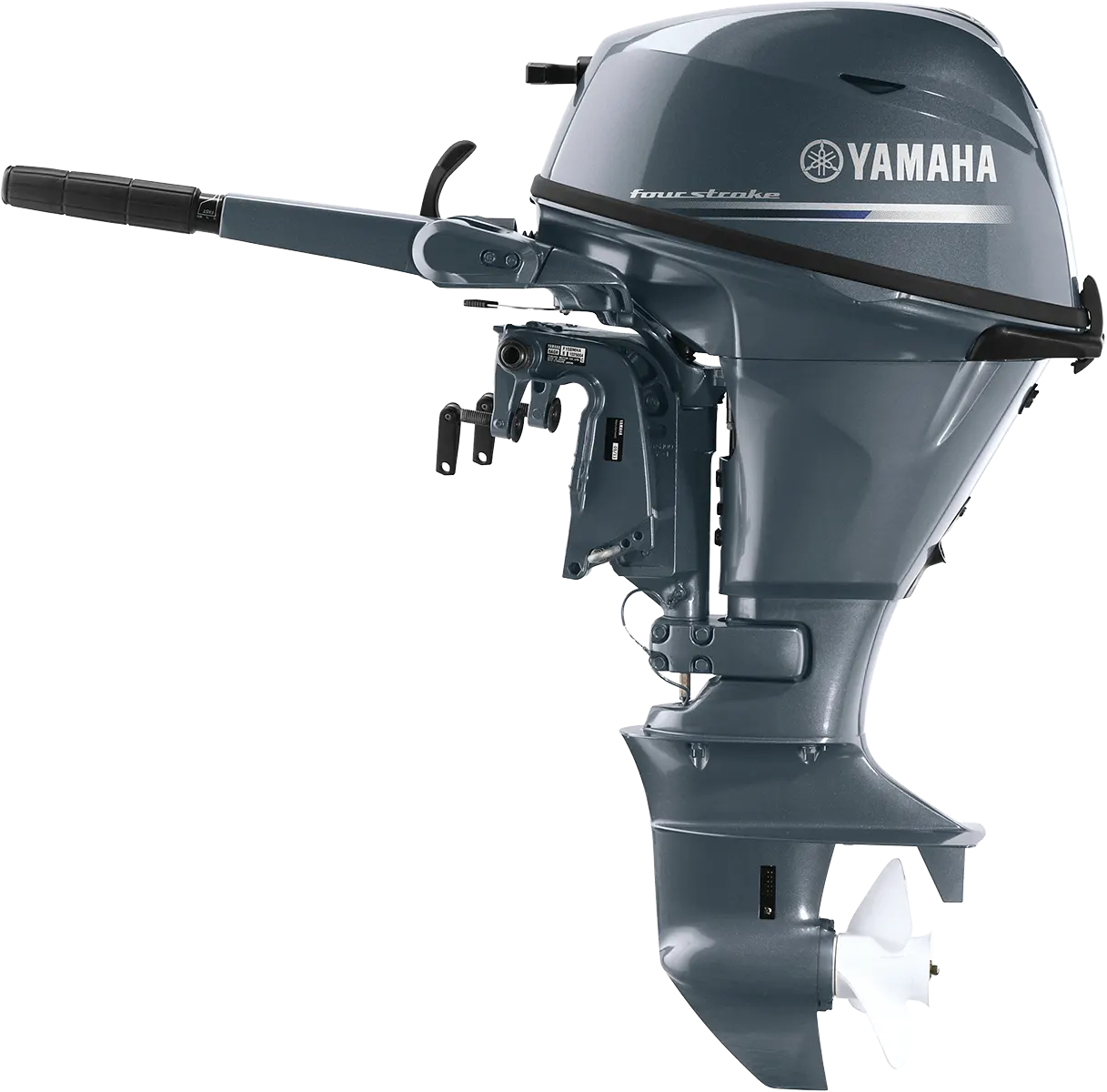

F15MH
F15EH
15
Meet the line up
Overview
Compatibility
Colours
Operation Method
Steering System
Tiller
Trim & Tilt Method
Digital Gauges
Electronic Key System
Specifications
Engine Type
Configuration
Bore x Stroke (mm)
Displacement (cm3)
Recommended Max RPM
Weight (kg)
Dry weight without prop.
Transom Height
Starter Method
Fuel Tank Capacity (L)
Fuel Induction System

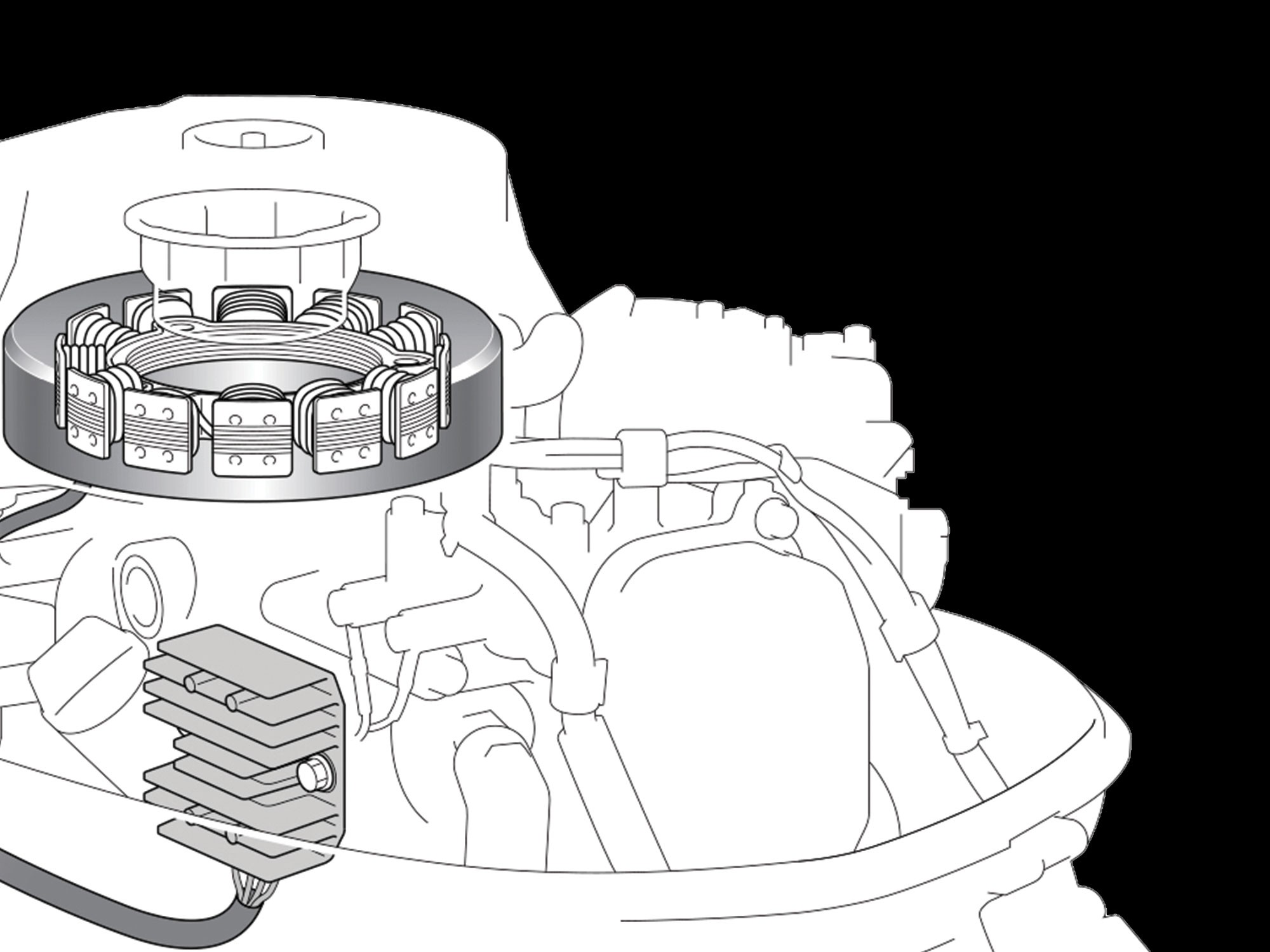

Alternator Output
Gear Ratio
F15MH
Signature Grey
Pearlescent White
Digital Electronic Control
N/A
N/A
Manual Tilt
CL5
6Y8
No
In-line 2 - 4 Stroke
SOHC
63 X 58.1
362
5000-6000
F15SMHA: 51 F15LMHA: 53
S: 438 (17.2) L: 565 (22.2)
Manual
-
Carburetted
10A (EH)
2.08 : 1
F15EH
Signature Grey
Pearlescent White
Digital Electronic Control
N/A
N/A
Manual Tilt
CL5
6Y8
No
In-line 2 - 4 Stroke
SOHC
63 X 58.1
362
5000-6000
F15SEHA: 54 F15LEHA: 56
S: 438 (17.2) L: 565 (22.2)
Electric
-
Carburetted
10A (EH)
2.08 : 1
